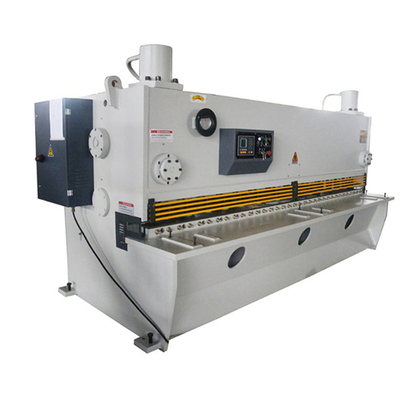

Inicio /Productos/Máquina de corte de metal/Hotels QC11K/QC11Y 8*2500 E21S Hydraulic Manual Metal Sheet Slitter Guillotine Shear Shear Machine

Hotels QC11K/QC11Y 8*2500 E21S Hydraulic Manual Metal Sheet Slitter Guillotine Shear Shear Machine

1 set
MOQ
Hotels QC11K/QC11Y 8*2500 E21S Hydraulic Manual Metal Sheet Slitter Guillotine Shear Shear Machine
Caracteristicas Galería Descripción de producto Pida una cita
Caracteristicas
Especificaciones
Max. Cutting Width (mm): 2500
Max. Cutting Thickness (mm): 8 mm
Automatic Level: Fully Automatic
Shearing Angle: 0.5°-1°30'
Blade Length (mm): 2500 mm
Backgauge Travel (mm): 10 - 600 mm
Throat Depth (mm): 80 mm
Condition: New
Nombre de la marca: DG MACHINE
Power (kW): 7.5 kW
Weight (KG): 6200 KG
Place of Origin: Anhui, China
Voltage: Customized
Dimension(L*W*H): 3100*1725*1960
Year: 2021
Warranty: 1 Year
Key Selling Points: High Safety Level
Applicable Industries: Hotels, Machinery Repair Shops, Manufacturing Plant, Farms, Retail, Construction works
Showroom Location: None
Marketing Type: Ordinary Product
Machinery Test Report: Provided
Video outgoing-inspection: Provided
Warranty of core components: 1 Year
Core Components: Bearing, Motor, Pump, Gear, PLC, Pressure vessel, Engine, Gearbox
Product name: QC11K / QC11Y CNC hydraulic guillotine shearing machine
Bumper distance: 600mm
Blade material: 9CrSi/6CrW2Si
Color: White/Red or customized
Type: QC11Y-8*2500 mm
Control system: ESTUN E21S
Travel Times: ≥8 Times/min
Cutting mode: Cold Cutting
Cutting material: Stainless steel/Alloy/Metal /aluminum
Cutting thickness: 8mm
After-sales Service Provided: Free spare parts, Field installation, commissioning and training, Online support, Video technical support
After Warranty Service: Video technical support, Online support, Spare parts
Local Service Location: None
Certificación: CE ISO
Información básica
Place of Origin: Anhui, China
Nombre de la marca: DG MACHINE
Certificación: CE ISO
Pago y Envío Términos
Packaging Details: QC11K / QC11Y 8*2500 E21S shearing cutting machine metal sheet plate hydraulic manual guillotine shear machine Packaging:wooden cases for guillotine shearing machine
Supply Ability: 20 Set/Sets per Month hydraulic guillotine shear
Descripción de producto
Type
Cutting Thickness
Cutting Width
Cutting Angle
Bumper distance
Throat depth
Travel Times
Power
Dimension
(mm)
(mm)
(°)
(mm)
(mm)
(Min﹣¹)
（KW)
L×W×H(mm)
6×2500
6
2500
0.5°～1°30´
600
80
14
7.5
3100×1725×1960
6×3200
6
3200
0.5°～1°30´
600
80
12
7.5
3650×1750×1980
6×4000
6
4000
0.5°～1°30´
600
80
10
7.5
4650×1780×2075
6×5000
6
5000
0.5°～1°30´
600
80
8
7.5
5650×1830×2250
6×6000
6
6000
0.5°～1°30´
600
80
8
7.5
6650×1890×2380
8×2500
8
2500
0.5°～1°30´
600
80
14
7.5
3100×1725×1960
8×3200
8
3200
0.5°～1°30´
600
80
12
7.5
3850×1750×1980
8×4000
8
4000
0.5°～1°30´
600
80
10
7.5
4650×1850×2075
8×5000
8
5000
0.5°～2°
600
80
7
15
5805×2000×2500
8×6000
8
6000
0.5°～2°
600
100
7
15
6805×2115×2715
10×2500
10
2500
0.5°～2°30´
600
120
10
15
3195×1800×2210
10×3200
10
3200
0.5°～2°30´
600
120
8
15
3895×1800×2240
10×4000
10
4000
0.5°～2°30´
600
120
6
15
4695×1930×2275
10×5000
10
5000
0.5°～2°30´
600
120
5
15
5905×2115×2715
10×6000
10
6000
0.5°～2°30´
600
120
5
15
6905×2215×2800
12×2500
12
2500
0.5°～2°30´
600
120
10
15
3195×1800×2210
12×3200
12
3200
0.5°～2°30´
600
120
8
15
3895×1800×2240
12×4000
12
4000
0.5°～2°30´
600
120
6
15
4710×1950×2485
12×5000
12
5000
0.5°～2°30´
600
120
5
18.5
5905×2115×2800
12×6000
12
6000
0.5°～2°30´
600
120
4
18.5
7000×2300×3100
16×2500
16
2500
0.5°～2°30´
600
120
8
15
3215×1880×2340
16×3200
16
3200
0.5°～2°30´
600
120
7
15
3915×1880×2445
16×4000
16
4000
0.5°～2°30´
600
120
6
15
4715×1950×2590
16×5000
16
5000
0.5°～3°
600
120
5
22
6000×2300×3000
16×6000
16
6000
0.5°～3°
600
120
4
37
7000×2300×3100
20×2500
20
2500
0.5°～3°
600
120
6
22
3215×1890×2465
20×3200
20
3200
0.5°～3°
600
120
5
30
4120×1890×2780
20×4000
20
4000
0.5°～3°
600
120
4
30
4925×2150×2900
20×5000
20
5000
0.5°～3°
600
120
4
37
6000×2300×3050
25×2500
25
2500
0.5°～3.5°
600
120
5
30
3435×2000×2710
25×3200
25
3200
0.5°～3.5°
600
120
5
30
4120×2200×3000
25×4000
25
4000
0.5°～3.5°
600
120
3
30
4950×2200×3150
30×2500
30
2500
1°～3.5°
600
120
4
30
3435×2020×2770
30×3200
30
3200
1°～3.5°
600
120
3
37
4200×2300×3200

Q1: After I buy the machine, what will you do if I don't know some of the function?
A1: We will show you how to use the machine perfectly. Technical support and the video is available.

Q2: Will you show me how to install the machine?
A2: Certainly, we will enclose the production specification with the machine, and we could provide the video online to you, and our engineers are available to service machinery overseas.

Q3: How about your after sales service?
A3: Our experienced engineers are waiting to make service for you. One-top service term made us survive from fierce competition.

Q4: What's the policy for guarantee and broken parts?
A4: Warranty period of equipment lasts two years, during which the broken parts and spares caused by quality can be offered free.
